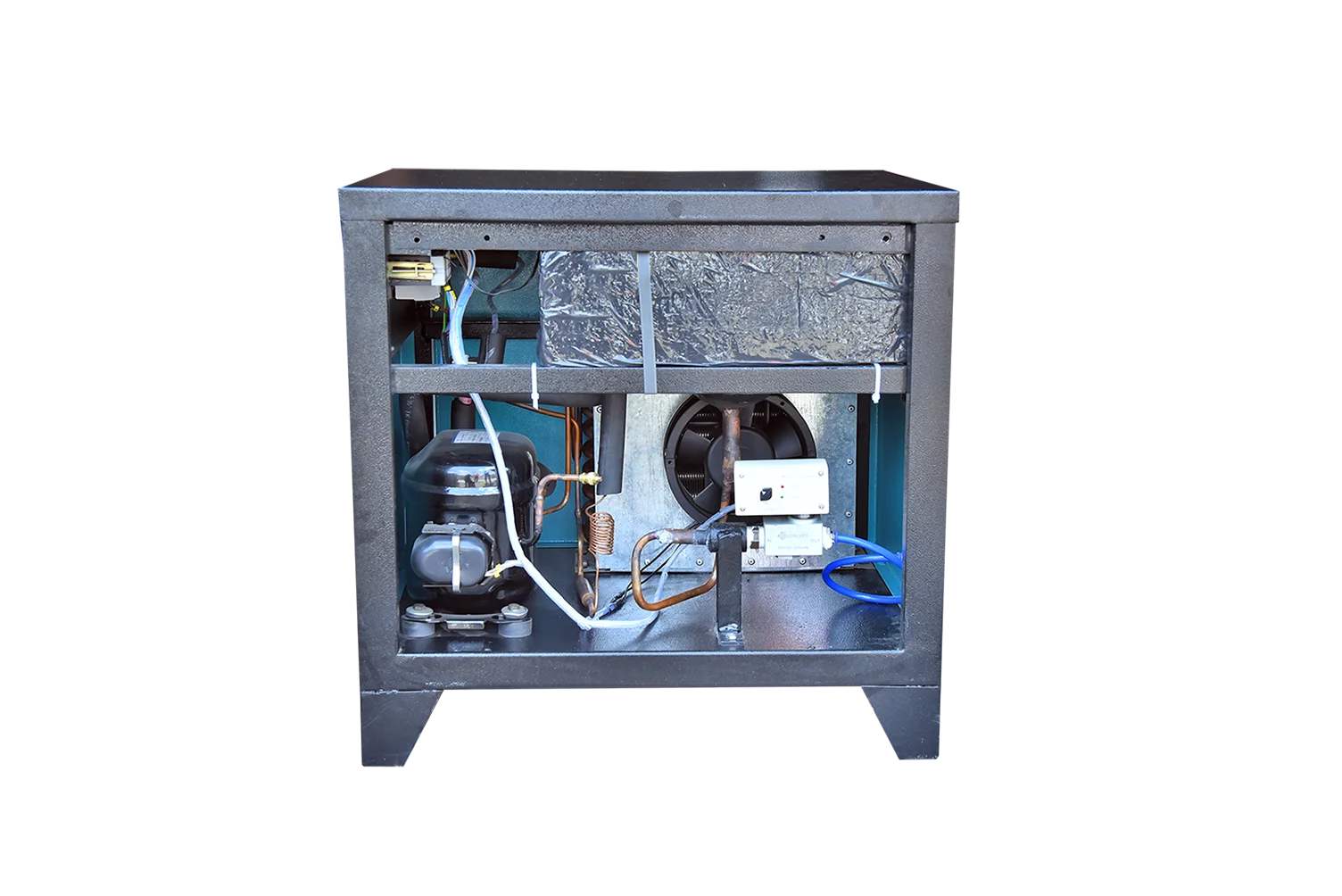

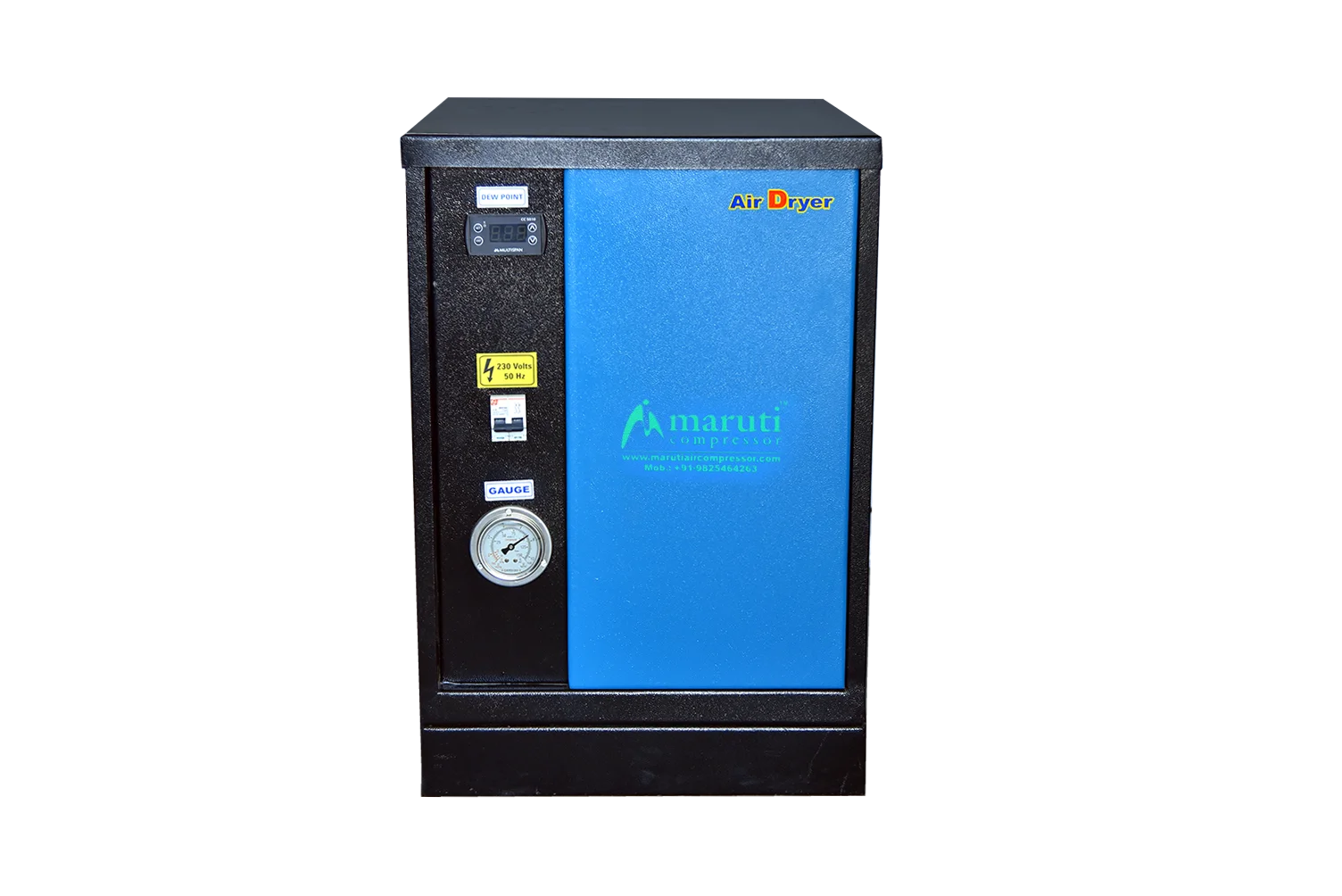

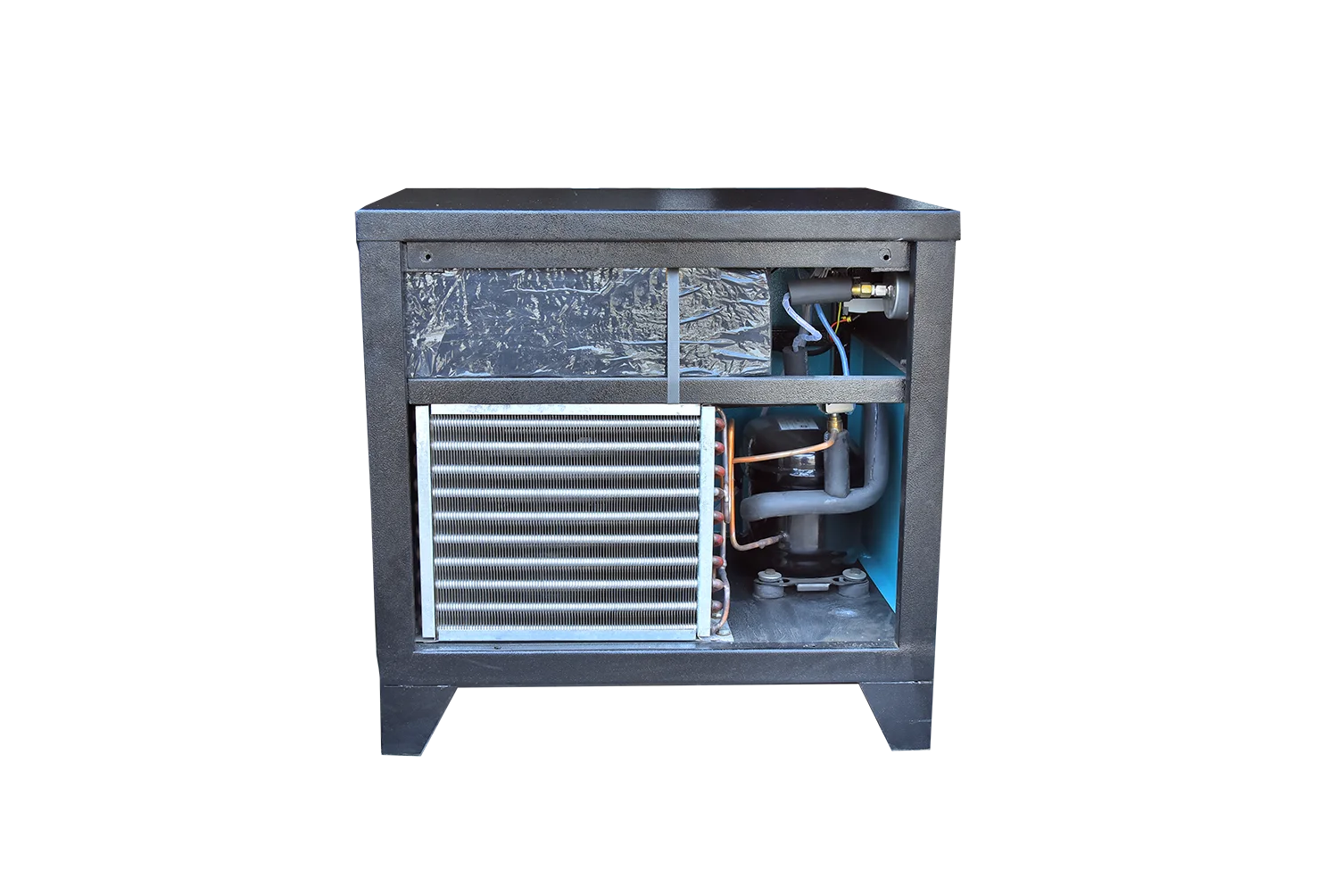

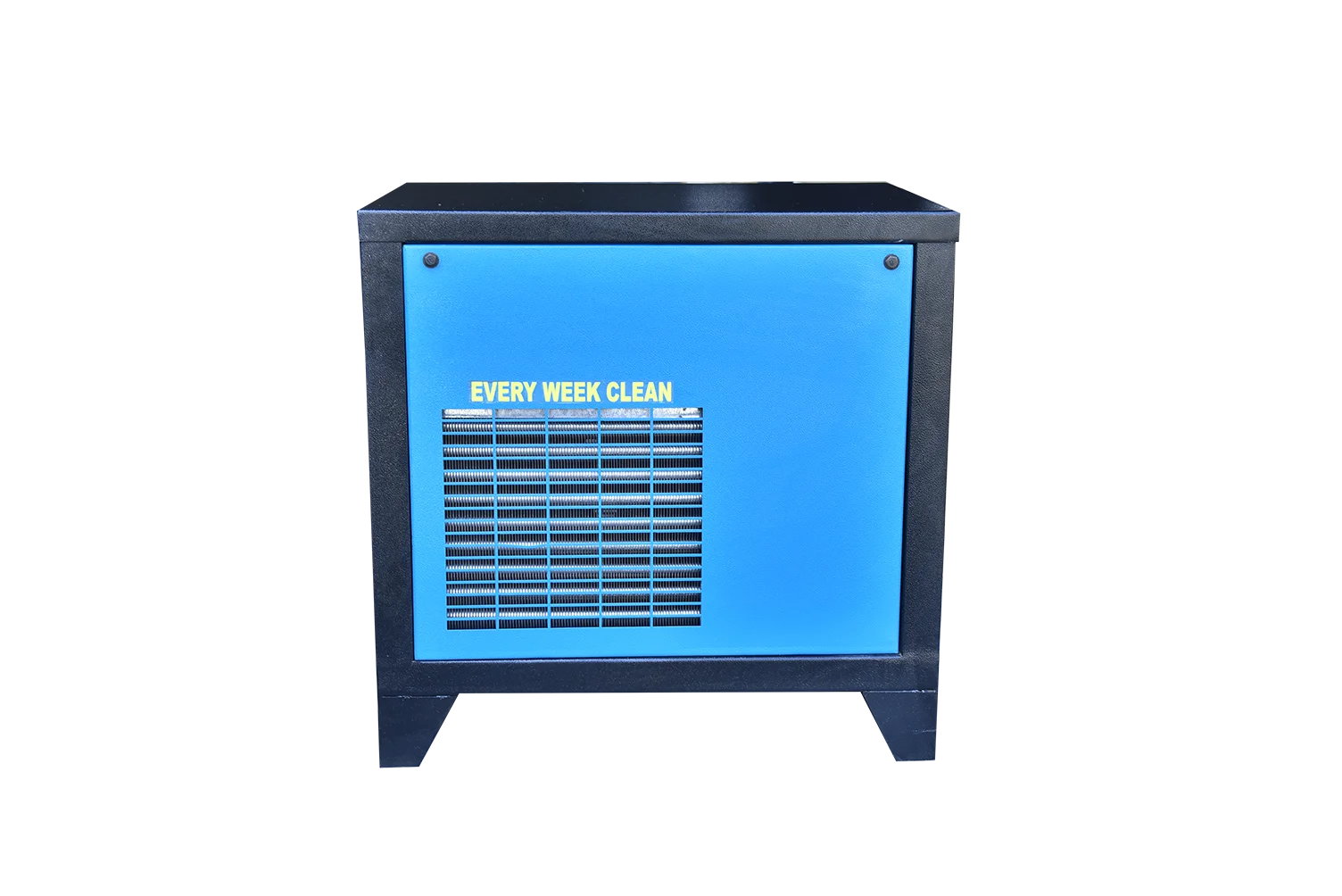

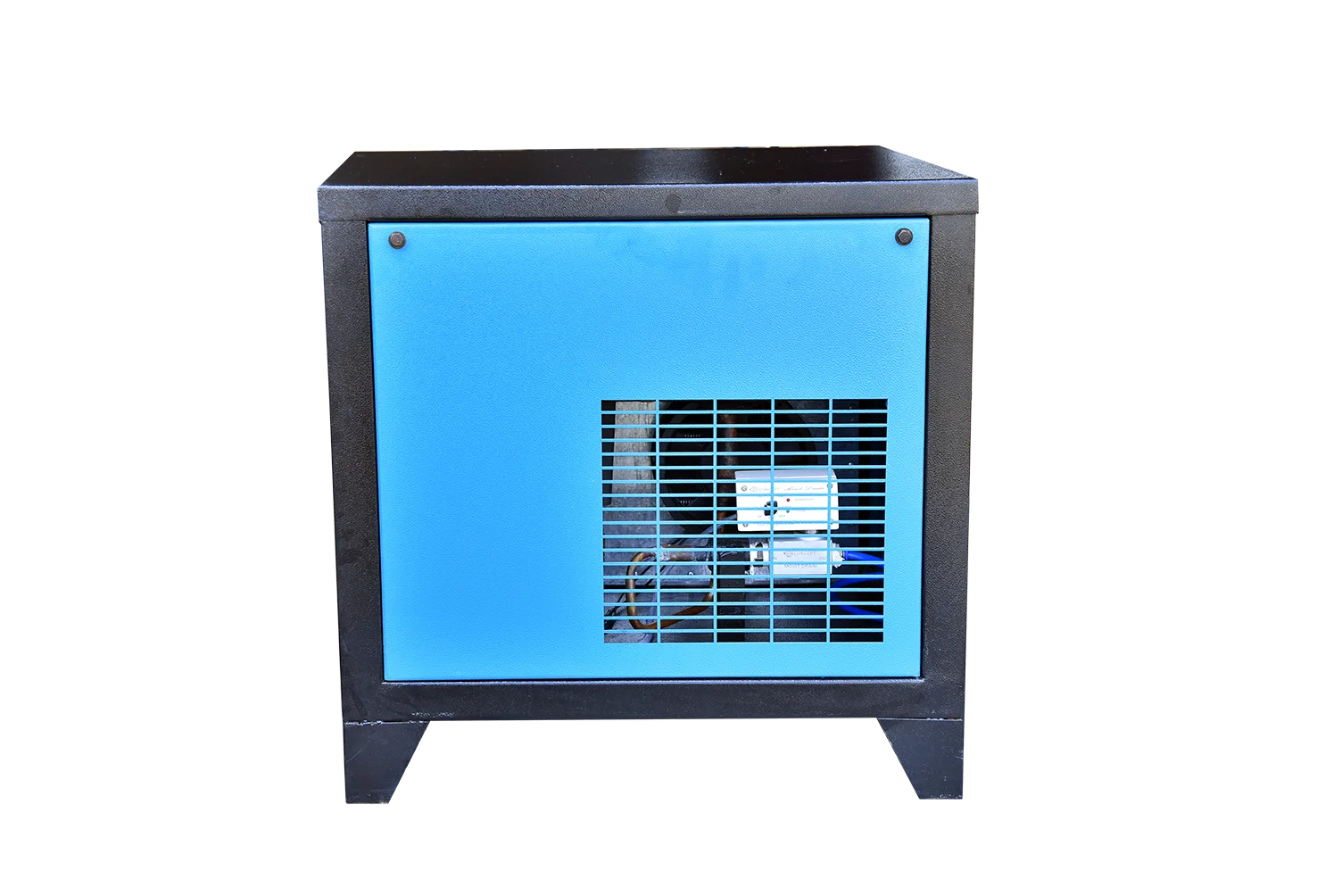

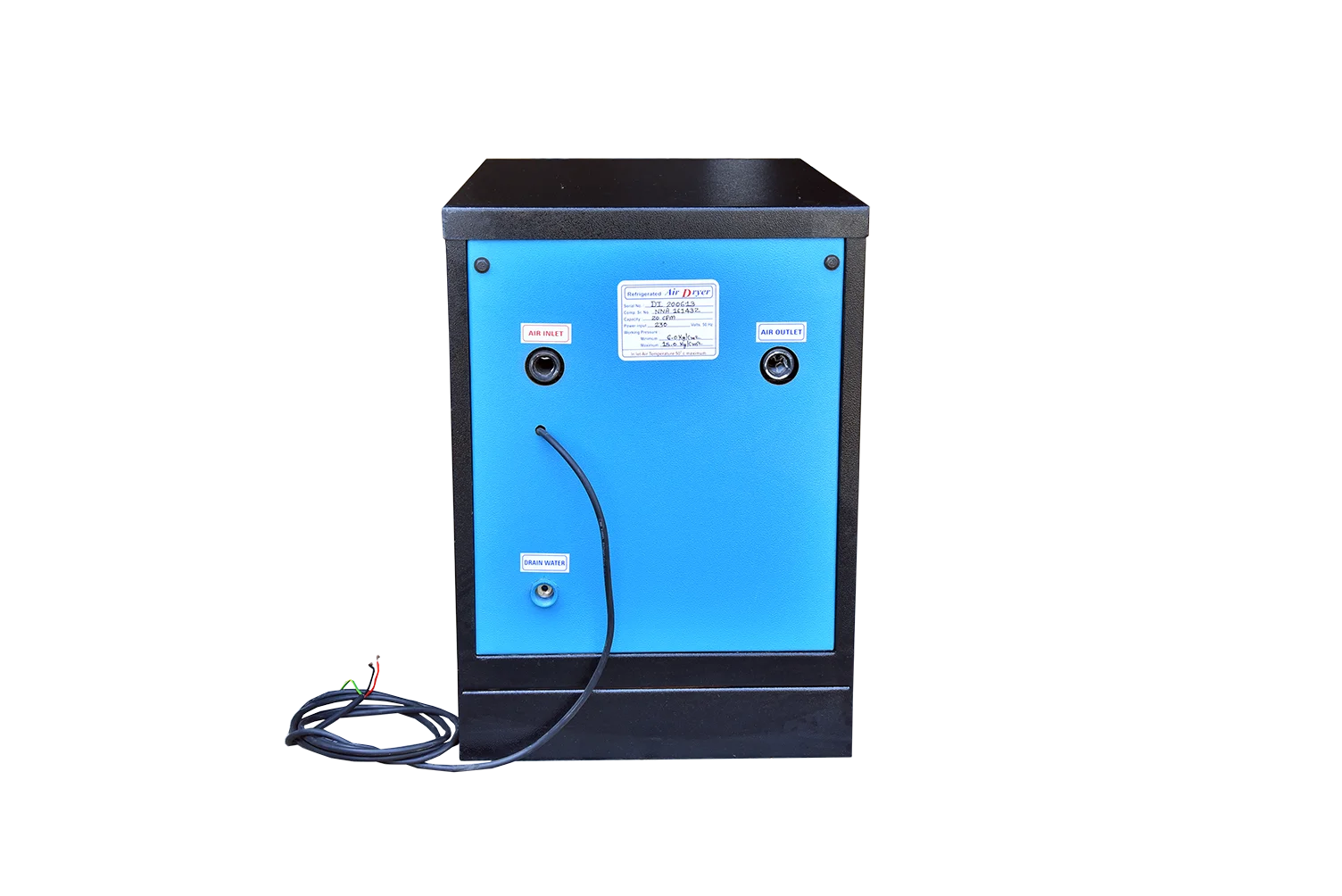

80cfm Refrigerated Air Dryer Manufacturers
- Made of Supreme Quality With CE Certified
- Durable Electrical Energy into Mechanical Energy
- With Electrical Timer Based Auto Drain Valve
- With Emmerson make made in Germany Compressor
TECHNICAL SPECIFICATION FOR 40 CFM REFRIGERATED AIR DRYER SYSTEM
| Weight | 75 kg |
|---|---|
| Dimensions | 72.5 × 57.5 × 75 cm |
| Max Working Pressure | 15.0 Kg/sq.cm |
| Design Pressure | 18 Kg/sq.cm |
| Inlet Connection | 1/2″ BSP |
| Outlet Connection | 1/2″ BSP |
| Pre Cooler | Make: MARUTI, Material: Copper Pipe, Type: Tube and Tube |
| Evaporator | Make: MARUTI, Material: Copper Pipe, Type: Tube and Tube |
| Moisture Separator | Make: MARUTI, Material: Mild Steel, Type: Centrifugal |
| Refrigerant Compressor | Make: Dry All / Emerson / Danfoss, Type: Absorption, Power: 220V, 50Hz |
| Refrigerant | R-134A |
| Condenser | Make: MARUTI, Type: Air Cooled, Size: 14×16×2 Row, Material: Copper with Aluminium Fins |
| Fan Motor | Make: Hicool, Type: Q Motor with 10″ Fan Dia, Power: 220V 50Hz, Watts: 10 |
| Filter Drier | Make: Dry All / Emerson / Danfoss, Type: Absorption |
| Expansion Valve | Make: MARUTI, Material: Copper, Type: Capillary |
| Temperature Controller | Make: Multispan / Sub-Zero, Model: CC-5020 / SZ-7510-P, Type: Sensor Based |
| Auto Drain Valve | Make: Concept, Model: Low Pressure, Type: Timer Based, Size: 1/2″ BSP |
| Canopy | Material: CR Sheet |
| Finish | Powder Coating, Colour: Black and Green |
| Pressure Dew Point | +2 Deg |
| Atmospheric Dew Point | –22Deg |
| Overall Dimensions (mm) | Length: 600 | Width: 475 | Height: 660 |
| Weight (Without Packing) | 75 kgs |
