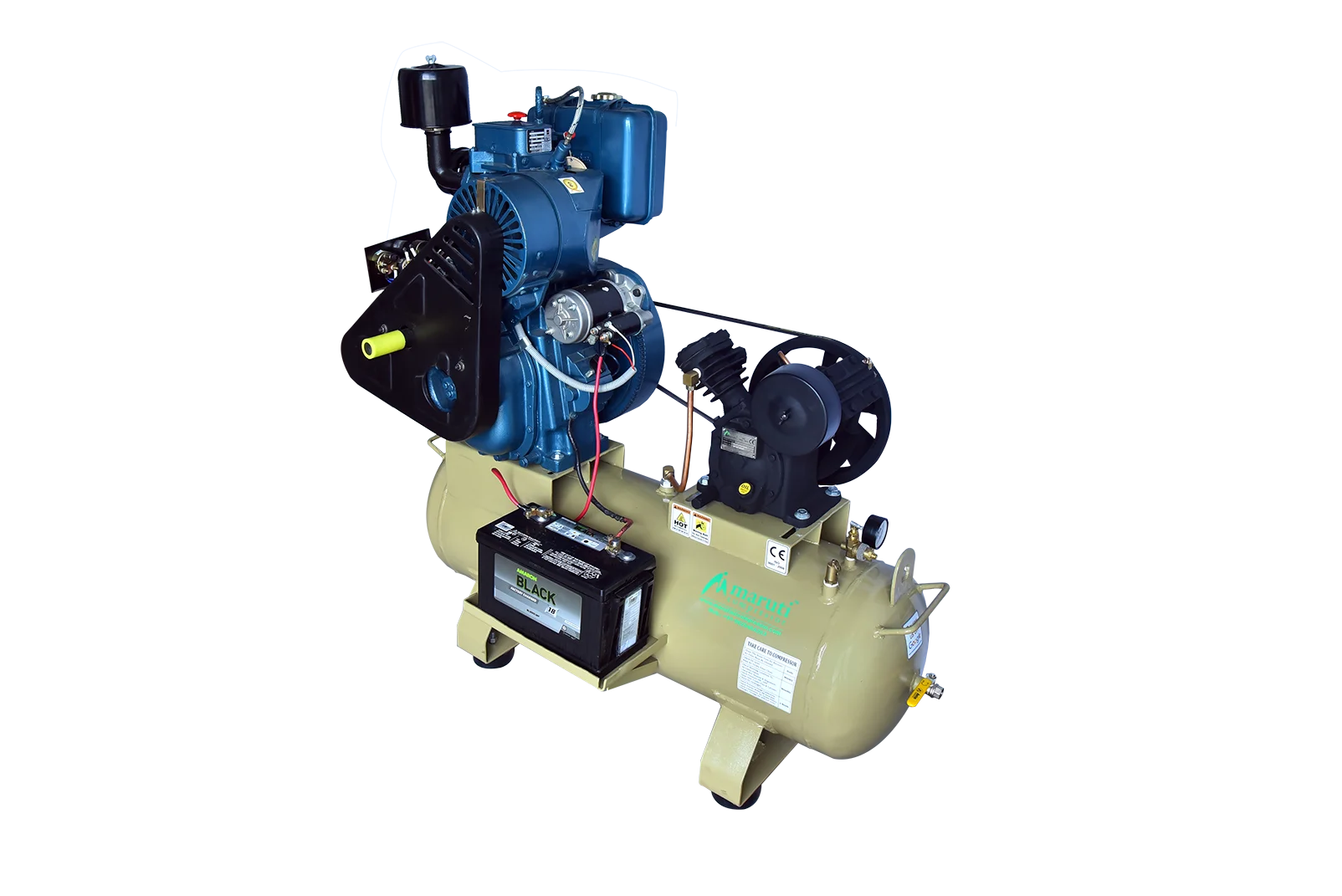

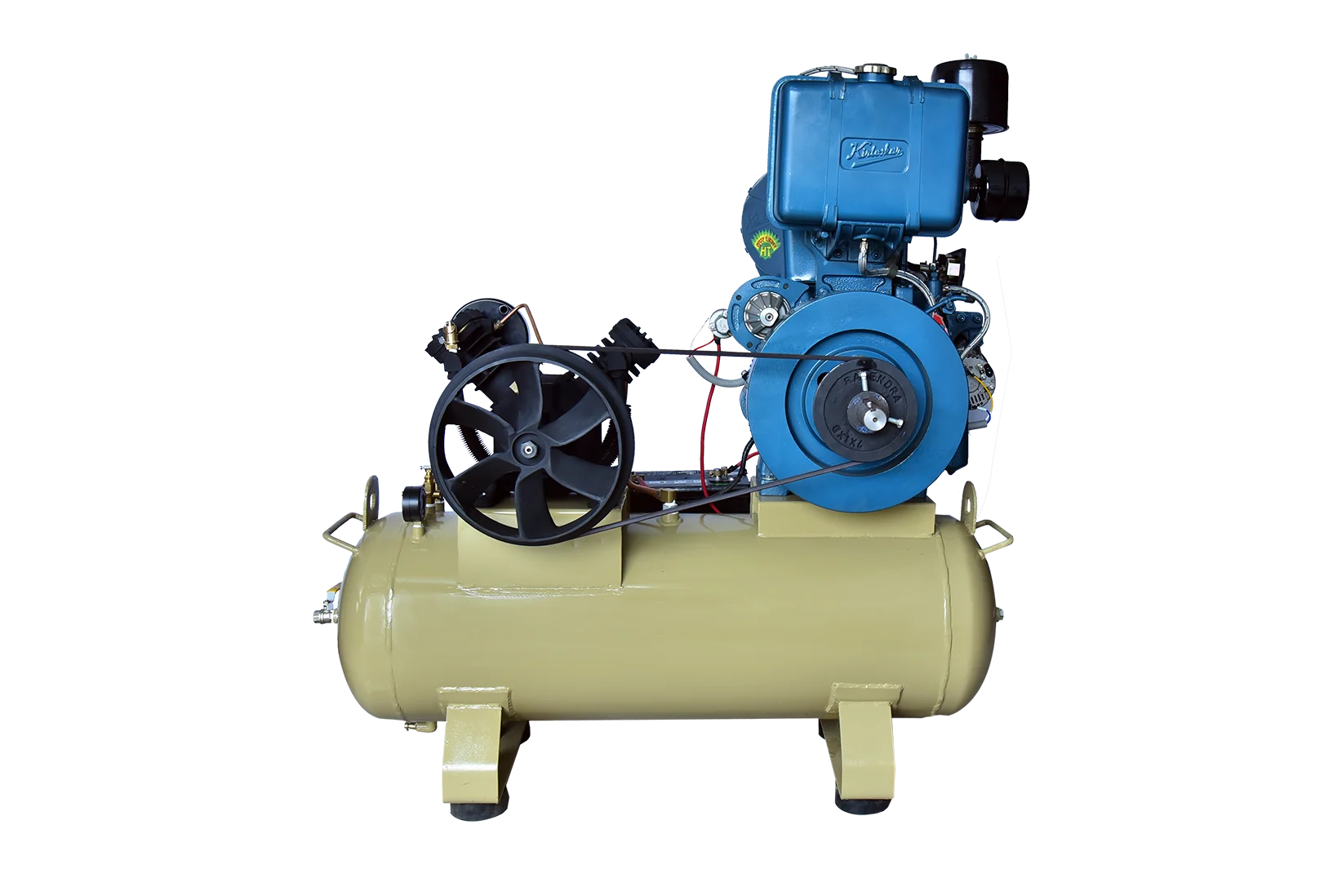

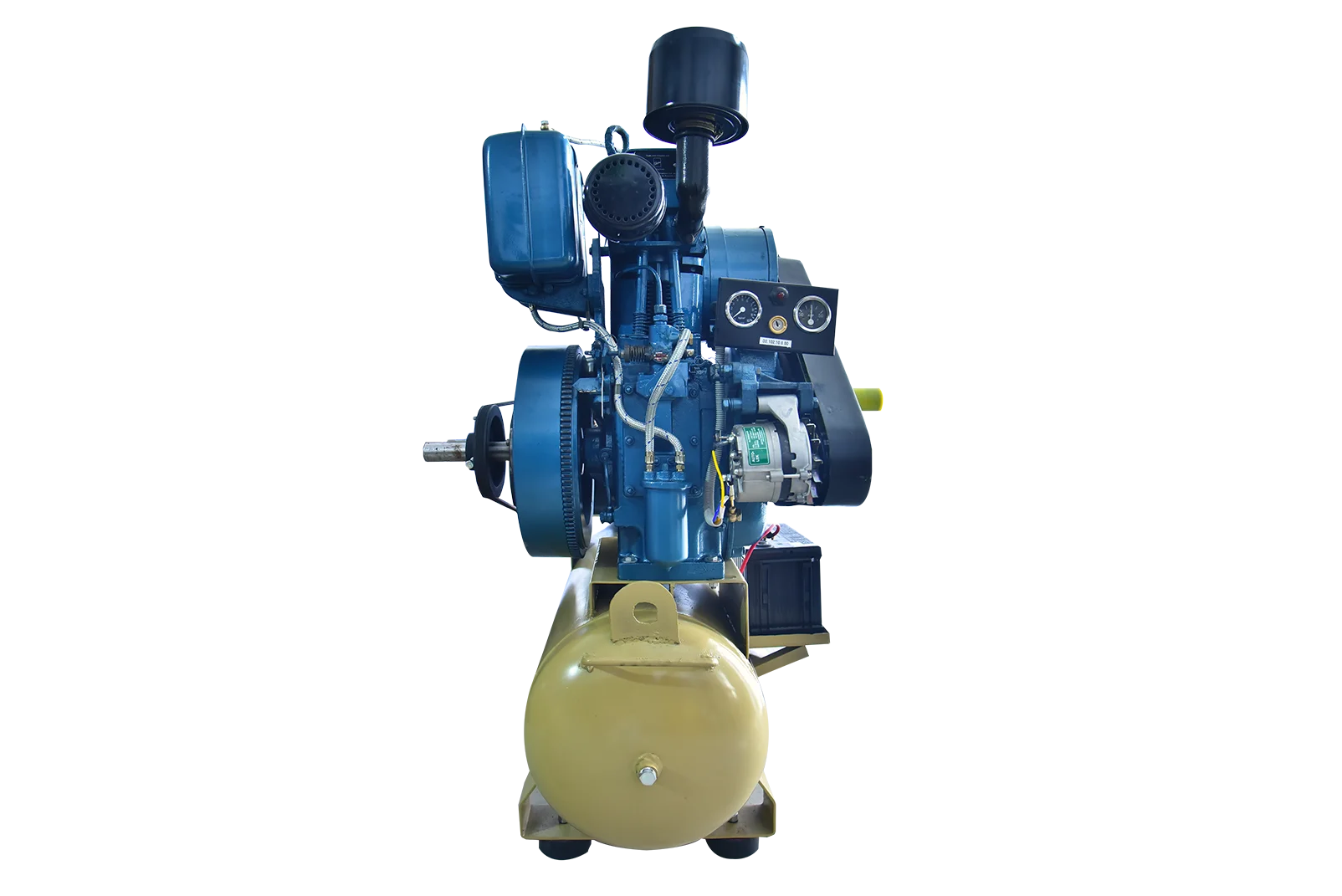

7.5hp Portable Diesel Engine Air Compressor
- Brand New and High Quality Self Start Diesel Engine Air Compressor
- Fully An Automatic Load & Unload System by Mechanical Valve
- Durable Electrical Energy into Mechanical Energy
- This Machine Uses At Where Electric Not Available
- Compressors To Be Moved By Either A Truck, Forklift Or Crane
- Rock-bottom Price with CE & ISO 9001:2015 Quality Product.
Technical Specifications: CE & ISO 9001:2015 QUALITY PRODUCTS
| Weight | 350 kg |
|---|---|
| Dimensions | 203 × 117 × 127 cm |
| Item SKU Number | DD75HP – LUBRICATED RECIPROCATING AIR COOLED |
| Make | Maruti Compressor Made in India |
| Model | MARUTI – 1253 , 7.5 HP / 5.59 kW |
| Diesel Engine |
CLICK HERE TO DOWNLOAD CATALOG-DA10
CLICK HERE TO DOWNLOAD 10BHP SCOPE OF SUPPLY |
| No. of Cylinders | 2 |
| Bore Stroke | 5” & 3” / 3.50” |
| Piston Displacement | CFM 26.40 / Ltr/Min 739.20 / m3/hrs 44.85 / m3/min 0.73 |
| Maximum Working Pressure | 12.3 BAR / 175 PSIG |
| Air Receiver Capacity | 300 LTR. Size 18″ × 72″ inch 5mm shall 5mm disk |
| Battery | AMRON MAKE 12V – 90 AMPERE BATTERY |
| Standard Accessories | Automatic load unload aux valve, Air Delivery Valve, Pressure gauge, Manual water Tank Drain valve, Belt Guard, Inlet Air Filter & Check Valve in Discharge. |
| Scope of Supply | CLICK HERE TO DOWNLOAD 10BHP SCOPE OF SUPPLY |
| Net Weight | Length 76″ Width 39″ Height 64″ In inches and Weight without packing 500 KG APPROX |
| Gross Weight | Length 81″ Width 44″ Height 69″ In inches and Weight with packing 700 KG APPROX |
| Warranty | 12 Months Warranty Against Manufacturing Defect |
| Documents | Hydro Test Lab Certificate, Pressure gauge calibration lab test certificates, Safety valve lab test certificates, all tests done in-house at our factory. |
