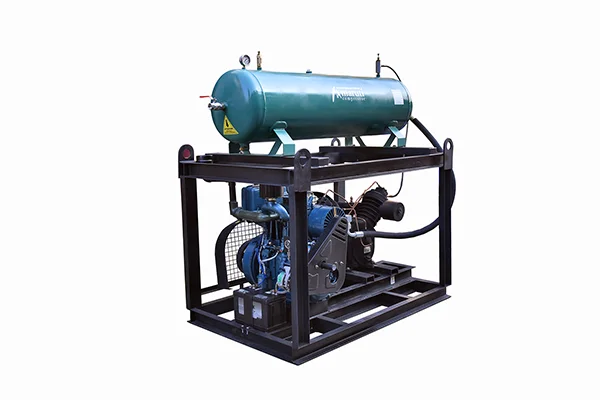

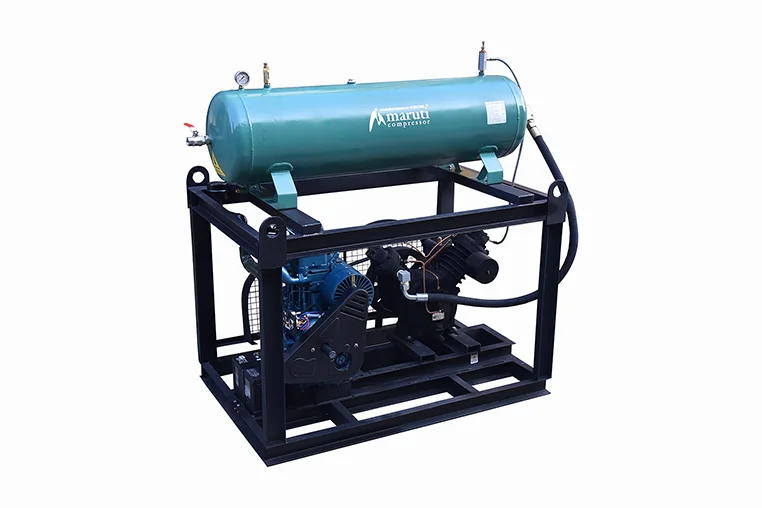

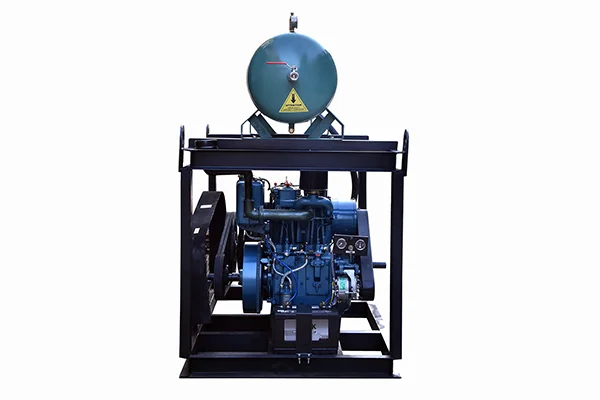

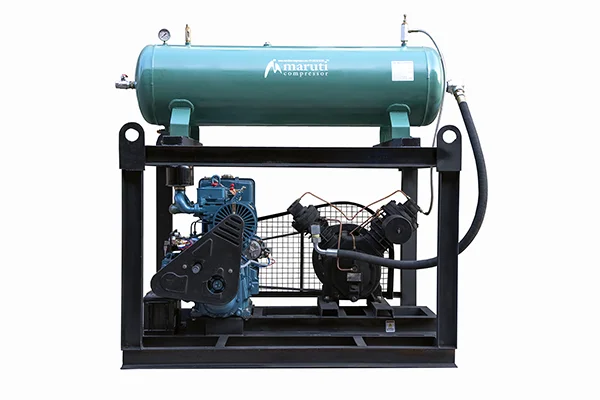

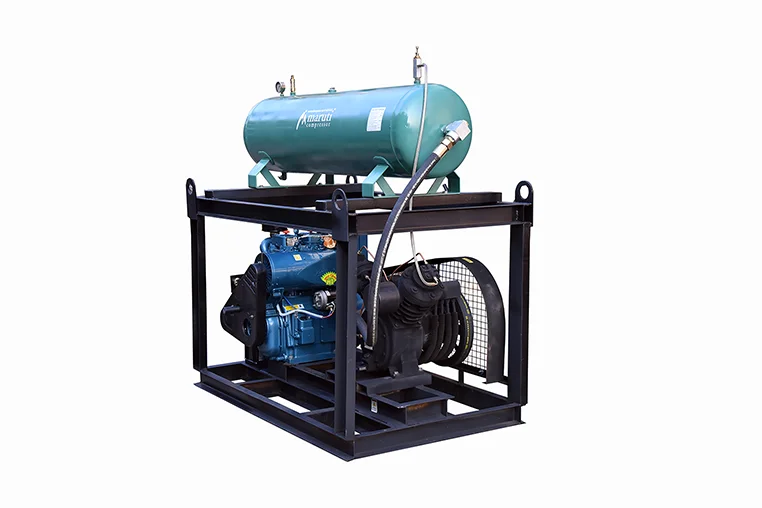

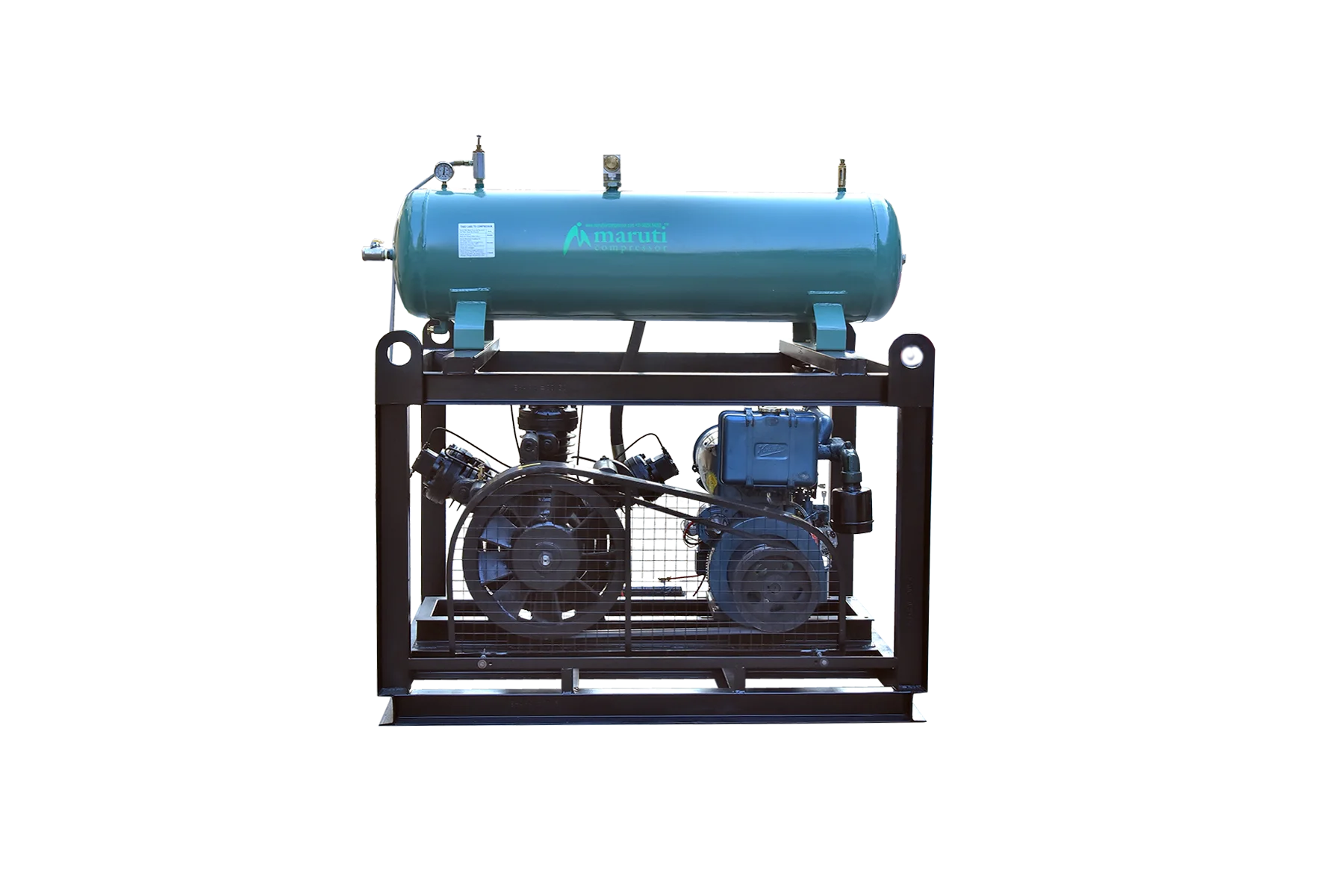

12.5hp Portable Diesel Engine Air Compressor
- Brand New and High Quality Self Start Diesel Engine Air Compressor
- Fully An Automatic Load & Unload System by Mechanical Valve
- Durable Electrical Energy into Mechanical Energy
- This Machine Uses At Where Electric Not Available
- Compressors To Be Moved By Either A Truck, Forklift Or Crane
- Rock-bottom Price with CE & ISO 9001:2015 Quality Product.
Technical Specifications: CE & ISO 9001:2015 QUALITY PRODUCTS
| Weight | 1000 kg |
|---|---|
| Dimensions | 178 × 127 × 191 cm |
| Item SKU Number | DD125HP – LUBRICATED RECIPROCATING AIR COOLED |
| Make | Maruti Compressor Made in India |
| Model | MARUTI – 1071 – 12.5 HP / 9.32 kW |
| Diesel Engine |
CLICK HERE TO DOWNLOAD 20BHP-SCOPE OF SUPPLY
CLICK HERE TO DOWNLOAD CATALOG – DA-20 20BHP |
| No. of Cylinders | 2 |
| Bore Stroke | 5.5” & 3” / 4” |
| Piston Displacement | CFM 40.00 / Ltr/Min 1120 / m3/hrs 67.96 / m3/min 1.12 |
| Maximum Working Pressure | 12.3 BAR / 175 PSIG |
| Air Receiver Capacity | 300 LTR. Size 18 × 72 inch 5mm shall 5mm disk |
| Battery | AMRON MAKE 12V – 90 AMPERE BATTERY |
| Standard Accessories | Automatic load unload aux valve , Air Delivery Valve, Pressure gauge, Manual water Tank Drain valve, Belt Guard, Inlet Air Filter & Check Valve in Discharge |
| Scope of Supply | As per Kirloskar engine |
| Standard Accessories | Automatic load unload aux valve , Air Delivery Valve, Pressure gauge, Manual water Tank Drain valve, Belt Guard, Inlet Air Filter & Check Valve in Discharge. |
| Net Weight | Length 70, Width 50, Height 75 In inches and Weight without packing 1000KG APPROX |
| Gross Weight | Length 70, Width 50, Height 75 In inches and Weight with packing 1400KG APPROX |
| Warranty | 12 Months Warranty Against Manufacturing Defect |
| Documents | Hydro Test Lab Certificate, Pressure gauge calibration lab test certificates, Safety valve lab test certificates, all test will be in house in our factory. |
