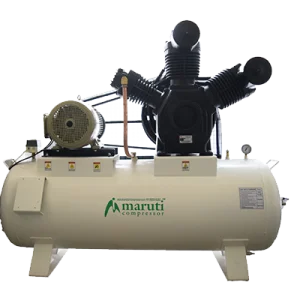

15hp Oil Free Medical Air Compressor
- Made of Supreme Quality
- Oil Free Oil Less Non-Lubricated
- Medical Grade Air Compressor
- Durable Electrical Energy into Mechanical Energy
- Use in Pharmaceuticals, Food, Medical and surgical hospitals
- Analytical, R&D Laboratories etc. Applications
- Covered with 1 Year Warranty.
Technical Specifications: CE & ISO 9001:2015 QUALITY PRODUCTS
| Weight | 850 kg |
|---|---|
| Dimensions | 213.36 × 101.6 × 160.02 cm |
| Model | MACT – 1015 MAKE IN INDIA |
| Description | CE – ISO 9001 CERTIFIED 100% OIL FREE COMPRESSOR, OIL LESS, NON-LUBRICATED MEDICAL GRADE AIR COMPRESSOR, FOR PHARMACEUTICALS, FOOD, MEDICAL AND SURGICAL HOSPITALS, ANALYTICAL, R&D LABORATORIES ETC. APPLICATIONS. |
| Motor HP | 15 MARUTI MAKE |
| KW | 11.19 (Electric Condition 14.9kw 415+/- 10% V,3 Phase 50hz+/- 5% AC supply with ambient 50ºC, Class “”F”” insulation with temperature rise limited to Class “”B”” ) |
| No. of Position | 3 |
| Piston Displacement | 65.3 |
| Ltr/Min | 1848 |
| m3/hrs | 111 |
| m3/min | 1.83 |
| Pressure PSIG | 10 BAR / 145 PSI |
| Air Tank Capacity in Litres | 500 LTR. Size 24” x 66” inch 6mm shall / 6mm disk |
| Standard Accessories | AUTOMATIC ON-OFF PRESSURE CONTROL SWITCH, AIR DELIVERY VALVE, PRESSURE GAUGE, MANUAL WATER TANK DRAIN VALVE, BELT GUARD, INLET AIR FILTER & CHECK VALVE IN DISCHARGE LINE, SAFETY VALVE, FLY WHEEL (PULLEY), MOTOR SLIDE RAILS, V – BELTS. PLUG AND PLAY. |
| Net Weight | Length 82″ Width 38″ Height 61″ In inches and Weight without packing 700KG APPROX |
| Gross Weight | Length 84″ Width 40″ Height 63″ In inches and Weight with packing 850KG APPROX |
| Warranty | 12 MONTHS WARRANTY AGAINST MANUFACTURING DEFECT |
