Nitrogen Air Filling Machine with Air Compressor
- COUNTRY OF ORIGIN: MADE IN INDIA
- CE & ISO 9001:2015 EXPORT QUALITY PRODUCTS
- MAXIMUM SUPPLY PRESSURE: 150PSI
- HOSE LENGTH: 4 METER INLET PIPE & 10 METER OUT LET PIPE
- EASY TO USE & FAST AIR INFLATING
- AUTOMATIC SHUTOFF
- WARRANTY PERIOD: 12 MONTHS.

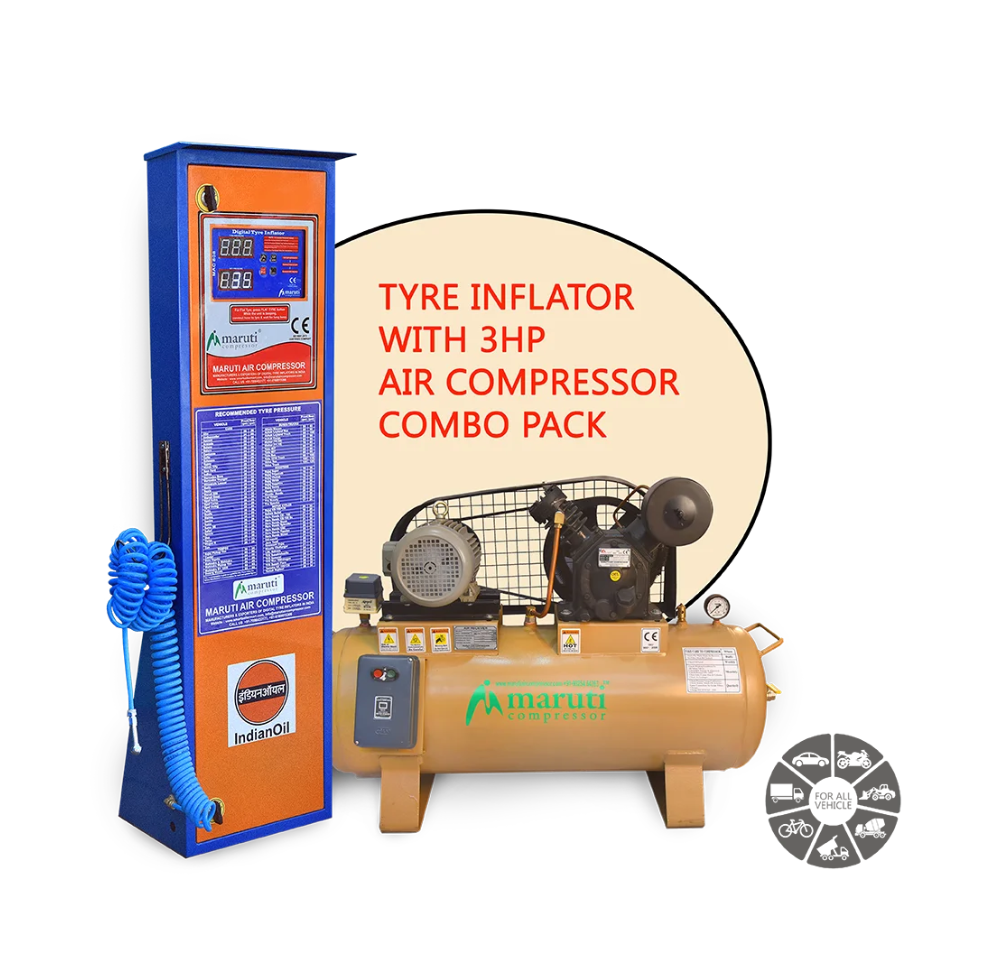

We Are Manufacturers and Suppliers of Digital Tyre Inflator with Suitable 3hp Heavy Duty Industrial Lubricated Piston Type Air Compressor Combo Set with All Related Accessories Plug and Play, And It Is Very Simple for An Installation First You Have to Connect Compressed Air Supply to Direct Digital Pressure Gauge Inlet Port It Will Automatically Work, This Pressure Gauge Suitable for Tire Inflator for Two Three Four Six-Wheeler and Heavy-Duty Military Army All Vehicles.
Specifications – Combo Pack
| SPECIFICATIONS FOR AIR GAUGE | |
|---|---|
| Weight | 22 kg |
| Dimensions | 41 × 10 × 140 cm |
| COUNTRY OF ORIGIN | MADE IN INDIA |
| QUALITY | CE & ISO 9001:2015 EXPORT QUALITY PRODUCTS |
| PRODUCT TYPE | DIGITAL TIRE INFLATOR SYSTEMS |
| READER UNIT | DIGITAL DISPLAY, DUAL DISPLAY: YES |
| AUDIBLE WARNING | YES, CHUCK STYLE: HOLD ON |
| UNIT MEASURE | PSI, INLET SIZE: ¼” BSP |
| HOSE LENGTH | 4 METER INLET PIPE & 10 METER OUT LET PIPE |
| DIMENSIONS | L 16” W 3.75” H 54.5” |
| WEIGHT | 18KG, ACCURACY: + / -0.5 PSI +1 DIGITAL |
| OPERATION TYPE | AUTOMATIC, IP CLASS: IP 65 |
| MAXIMUM SUPPLY PRESSURE | 150PSI |
| INLTET OPERATION PRESSURE | 0 TO 150 PSI |
| OUT LET PRESSURE SETTINGS | 1-150PSI |
| APPLICATION | TYRE INFLATION |
| SUPPLY VOLTAGE | 85-265V AC WITH 3 CORE 5MTR CABLE & 3 PIN TOP |
| WATTAGE | 20W MAX. |
| WORKING TEMPERATURE | 0-55 DEG SEC |
| INFLATION FLOW | TYRE AND PRESSURE CONDITIONS DEPENDS |
| WARRANTY PERIOD | 12 MONTHS WARRANTY AGAINST MANUFACTURING DEFECT |
| SPECIFICATIONS FOR 3HP AIR COMPRESSOR | |
| COUNTRY OF ORIGIN | MADE IN INDIA |
| QUALITY | CE & ISO 9001:2015 EXPORT QUALITY PRODUCTS |
| MODEL | MARUTI – 1234 |
| MOTOR | Motor HP 3 Three Phase MARUTI MAKE KW 2.24/50Hz |
| NO.OF POSITION | 2 |
| PISTON DISPLACEMENT | IN CFM 9.79, Ltr/Min 274.12, m3/hrs 16.63, m3/min 0.27 |
| PRESSURE | PSIG 12.3 BAR/175 PSI |
| AIR TANK CAPACITY | IN LITERS 160 LTR. Size 16” x 50” inch 4mm shall / 5mm disk. |
| STANDARD ACCESSORIES | Automatic on-off pressure Control Switch, Air Delivery Valve, Pressure gauge, Manual water Tank Drain valve, Belt Guard, Inlet Air Filter & Check Valve in Discharge line, Safety Valve, Fly wheel (Pulley), Motor Slide Rails, V – Belts. |
| NET WEIGHT | Length 57″ Width 30″ Height 38″ In inches and Weight without packing 155KG APPROX |
| GROSS WEIGHT | Length 59″ Width 32″ Height 40″ In inches and Weight with packing 175KG APPROX |
| WARRANTY PERIOD | 12 MONTHS WARRANTY AGAINST MANUFACTURING DEFECT |
